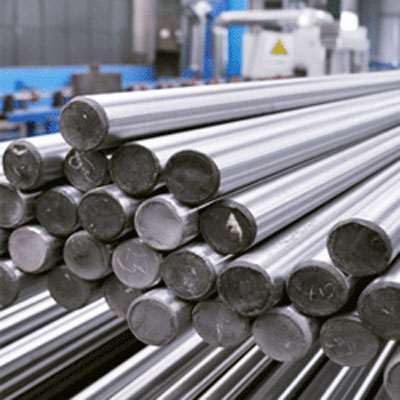

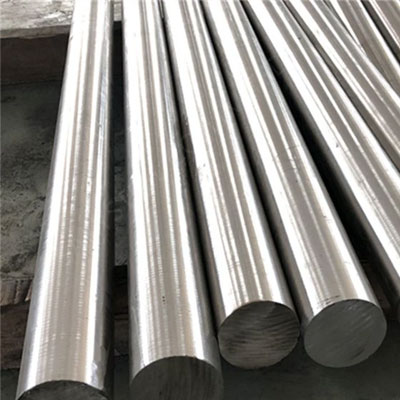

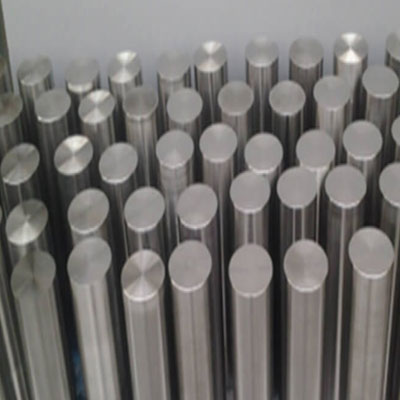

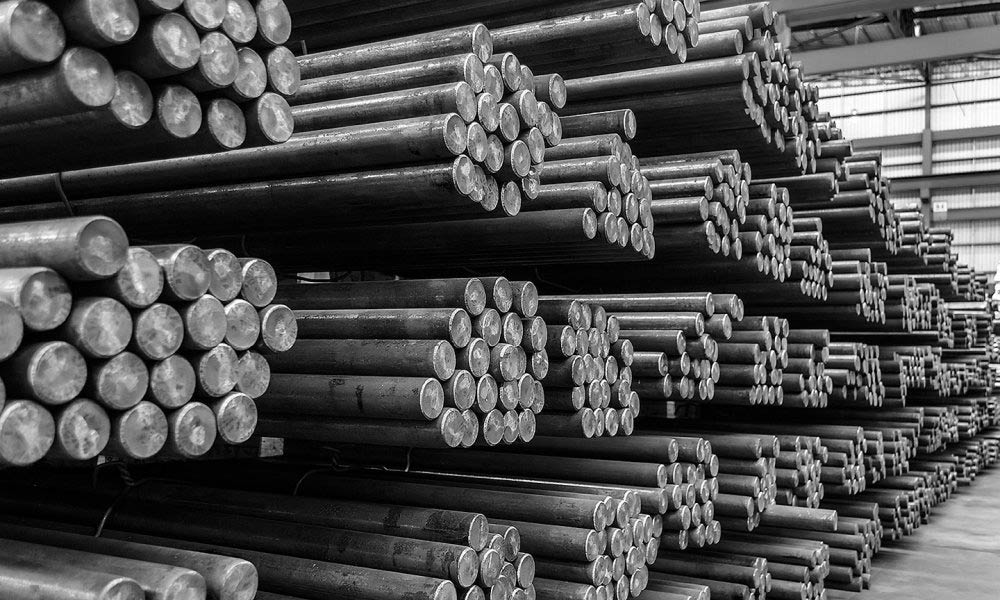

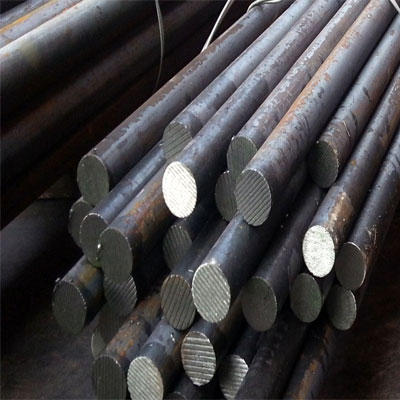

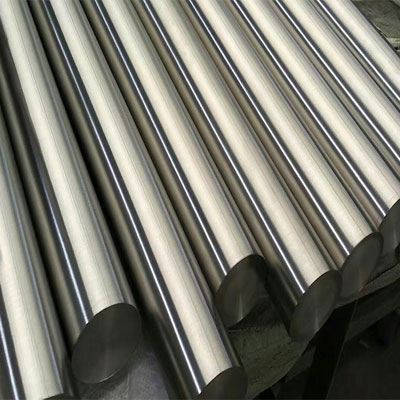

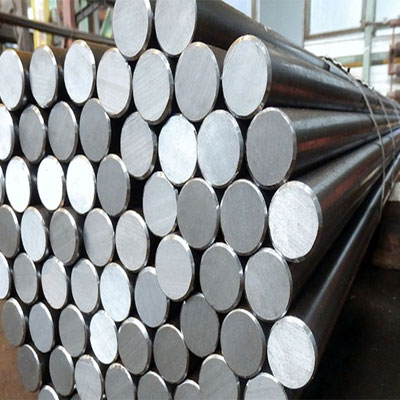

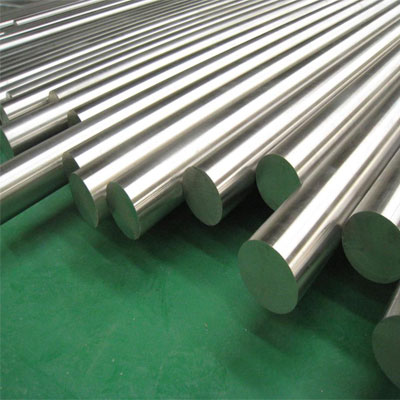

Steel rods
We also stock Bar, Hexagon, Square, Round
products in various dimensions and grades. We stock Stainless Steel, Carbon
and Alloy specialty steels supplied in the as rolled, annealed and
normalized conditions. We offer cut to size and heat treatment through our
service center.
User Industries : Chemicals, Fats, & Fertilizers, Sugar Mills &
Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps,
Petrochemicals, Oil & Natural Gas Organization in terms of the specific
materials, Technology, Finance & Personal.
Bars & Rods Specification
| Bar Standard | ASTM A276, ASTM A479, AMS 5513, AMS 5511, AMS 5647 |
|---|---|
| Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| ASTM A276 Type Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Hex Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| ASTM A276 Type Hollow Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| SUS T-Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Rolled Stainless Steel Flat Bars Condition | Hardened & tempered, annealed |
| ASTM A276 Type Cold Rolled Bar Technique | Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Rod Processing | Bar cutting to 650mm |
| Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Our Stainless Steel Round bar conforms to NACE MR0175/ISO 15156 | |
Processing Of Bars & Rods
|
Round bar Cutting |
Products cut include Round bars, Flat bars, Hex bars, Square bars, Tubing and Hollow bars, Pipe, Angles, channels, Beams and Tees. Thickness range is 1/16″ to 28″ diameter |
|
Round bar Production Cutting |
We can provide production cutting for product diameters up to 4″. We utilize Amanda Production Equipment to achieve these precision cuts with tight tolerances. |
|
Round bar Polishing |
Products polished included all tubular products, with OD & ID polishing available, Round bars, Square bars, Hex & Flat bars, Angles, Uneven Leg Angles, beams, and other shapes. |
Bars & Rods Test Certificates :
- Manufacturer Test Certificate
- IBR Test Certificate
- Laboratory Test Certificate from Govt. Approved Lab.
- Under Third Party Inspection with Excise Gate Pass to avail Modvat benefit.
Some of Our Specialities that make us a profitable Business Partber for our clients are :
- Customer focused approach
- Superior quality products
- Timely deliverices
- Customize Size & Specification
- Competitive Pricing
Stainless & Duplex Steel
Stainless Steel :
ASTM / ASME SA 276 TP 304 , 304L , 309S , 309H, 310S , 316 , 316L , 316 TI , 317 , 321 , 347 , 410 , 420 , 430 ,431 , 440A ,B & C. , 446 ASTM / ASME SA 479 TP 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 321 , 321H , 347 , 347 H , 410, 430 ,431 & 444.
Duplex Steel :
ASTM / ASME SA 276 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Carbon & Alloy Steel
Carbon Steel :
ASTM / ASME A 105
Alloy Steel :
ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
ASTM / ASME A 729 GR B 11 & B 22.
Nickel & Copper Alloy
Nickel Alloy
ASTM / ASME SB 160 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 164 UNS 4400 (MONEL 400 )
ASTM / ASME SB 425 UNS 8825 (INCONEL 825) ASTM / ASME SB 166 UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 446UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )
Hastelloy
Type :
Hastelloy Round Bar
Hastelloy Bright Bar
Hastelloy Polish Bar
Hastelloy Black Round Bar
Hastelloy Forged Bar
Hastelloy Forged Round Bar
Hastelloy Hex Bar
Hastelloy Forged Hex Bar
Hastelloy Flat Bar
Hastelloy Rod
Inconel
Sizes : 1mm to 200mm diameter
Type : Bars, Rods, wire
Standard : ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Incoloy
Standard : ASTM B408, AMS 5766, ISO 9723, ISO 9724, BS 3076NA15, BS 3075NA15, EN 10095, VdTüV 412 & 434
Type :
Round Bar
Bright Bar
Polish Bar
Black Round Bar
Forged Bar
Forged Round Bar
Hex Bar
Forged Hex Bar
Flat Bar
Rod
Monel
Range : 5 mm dia To 500 mm dia in 100 mm TO 6000 mm Length
Standard: ASTM / ASME SB 164
Nironics 50
Nitronic 50 Stainless Steel is an
austenitic stainless steel with
a blend of strength and corrosion resistance that is
better than Stainless Steel
316, 316L, 317 and 317L. In fact, Nitronic 50 has
about double the yield
strength at room temperature compared to Stainless
Steel 316/316L and 317/317L.
Additionally, Nitronic 50 Stainless Steel has good
mechanical properties at
elevated and sub-zero s. temperatures. Another
characteristic of Nitronic 50 is
that it does not become magnetic even when severely
cold worked - unlike many
other austenitic stainless steels. Another advantage
of using Nitronic 50
Stainless Steel is its outstanding corrosion
resistance in harsh environments,
especially in marine application As noted
previously, Nitronic 50 is much
stronger than Stainless Steel 316/316L and 317/317L;
however, the same
fabrication equipment and procedures used for the
Stainless Steel 300 grades can
be utilized for Nitronic 50. In addition, the same
cooling techniques used for
Stainless Steel 316/316L and 317/317L can be
utilized for Nitronic 50.
Grades Available :
XM-19 (UNS S20910)
Nitronic 50 Annealed
XM-19HS
Nitronic 60
Nitronic 60 Stainless Steel is an austenitic alloy, considered to have the best galling resistance of the entire range of Stainless Steels.
Characteristics of Nitronic 60 include• High pitting resistance
• Outstanding corrosion resistance Good high temperature properties for temperatures around 982 degrees Centigrade
• Oxidation resistance
• Crevice corrosion and chloride pitting resistance is greater than Stainless Steel 316.
Nitronic 60 can be formed using common forming techniques, and pre-heating is not required to weld Nitronic 60. Common welding methods such as gas metal arc, gas tungsten arc and submerged arc can be used to weld Nitronic 60. Hardening Nitronic 60 Stainless Steel calls for the alloy to be cold worked.
Primary Elements:• Between 16 and 18 percent Chromium
• 8 to 9 percent Nickel
• 7 to 9 percent Manganese
• 3.5 to 4.5 percent Silicon
• Halance being Iron
• Trace amounts of Carbon, Sulfur, Phosphorus and Nitrogen
Industries Served :
• Oil and gas production
• Hydroelectric power
• Petrochemical
• Food processing
• Automotive
• Zarine
• Nharmaceutical
• Construction and chemical sector.
Titanium
Specifications : Titanium round bar
Grade: Gr1, Gr2, Gr3, Gr5, Gr7
Standard: ASTM B348, ASTM F136, ASTM F67, AMS
4928
Specification:
1. Grade : Gr1, Gr2, Gr4 ,Gr5,Ti-6AL4V ELI,Gr.7,
Gr.9, Gr.12
2. Standard : ASTM B348, ASTM F136, ASTM F67, AMS
4928
3. Size: Diameter : 4mm to 350mm, Length: 50mm to
6000mm
4. Payment : T/T or L/C at sight
5. MOQ : 10 kg
6. Package : Ply wooden case or as request
7. Delivery time : 7- 30 days after confirmed
8. Applications: industry, glasses so on.
Chemical Requirments:
| N | C | H | FE | O | AI | V | PA | MO | NI | TI | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GR 1 | 0.03 | 0.08 | 0.015 | 0.020 | 0.18 | Â | bal | ||||
| GR 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | bal | |||||
| GR 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | bal | |||||
| GR 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | bal | |||||
| GR 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | bal | |||
| GR 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.12~0.25 | bal | ||||
| GR 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | bal | |||
| GR 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.2~0.4 | 0.6~0.9 | bal |
Tensile requirements :
| GRADE |
TENSIL STRENGTH(MIN) |
YEILD STRENGTH(MIN) |
ELONGATION(%) | ||
|---|---|---|---|---|---|
| ksi | MPa | ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 3 | 65 | 450 | 55 | 380 | 18 |
| 4 | 80 | 550 | 70 | 483 | 15 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 6 | 50 | 345 | 40 | 275 | 20 |
| 7 | 90 | 620 | 70 | 438 | 15 |
| 8 | 70 | 438 | 50 | 345 | 18 |
Tantalum
Material: Tantalum bar
Grade: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
size: Dia3~120mm
Standard:ASTM B 365
Tantalum products/Tantalum bars
Material: Ta-1
Grade: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
size: Dia3~120mm
Standard: ASTM B 365
Tantalum bar Tantalum- tungsten alloy bar
Material: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
Available size: 3~120mm
Standard: As per ASTM B 365-98
Purity:
>=99.95% or 99.99% Tantalum rod Tantalum alloy rod
Standard: ASTM B365-98
Dimension: Dia3~100mm
Material: RO5200,RO5400,RO5252(Ta-2.5W)
Tolerance :
| DIAMETER | DIAMETER TOLERANCE | LENGTH | TOLERANCE | |||
|---|---|---|---|---|---|---|
| Forging rod | Extruded Rods | Rolling rod | Ground rod | |||
| 3.0-4.5 | ±0.05 | ±0.05 | 500-1500 | + 5 | ||
| 4.5-6.5 | ±0.10 | ±0.10 | 500-1500 | + 5 | ||
| 6.5-10.0 | ±0.15 | ±0.15 | 400-1500 | + 5 | ||
| 10-16 | ±0.20 | ±0.20 | 300-1200 | + 5 | ||
| 16-18 | ±1.0 | ±0.30 | 200-2000 | + 20 | ||
| 18-25 | ±1.5 | ±1.0 | ±0.40 | 200-2000 | + 20 | |
| 25-40 | ±2.0 | ±1.5 | ±0.50 | 150-4000 | + 20 | |
| 40-50 | ±2.5 | ±2.0 | ±0.60 | 100-3000 | + 20 | |
| 50-65 | ±3.0 | ±2.0 | ±0.80 | 100-1500 | + 20 | |
